    • SbS16% 1020

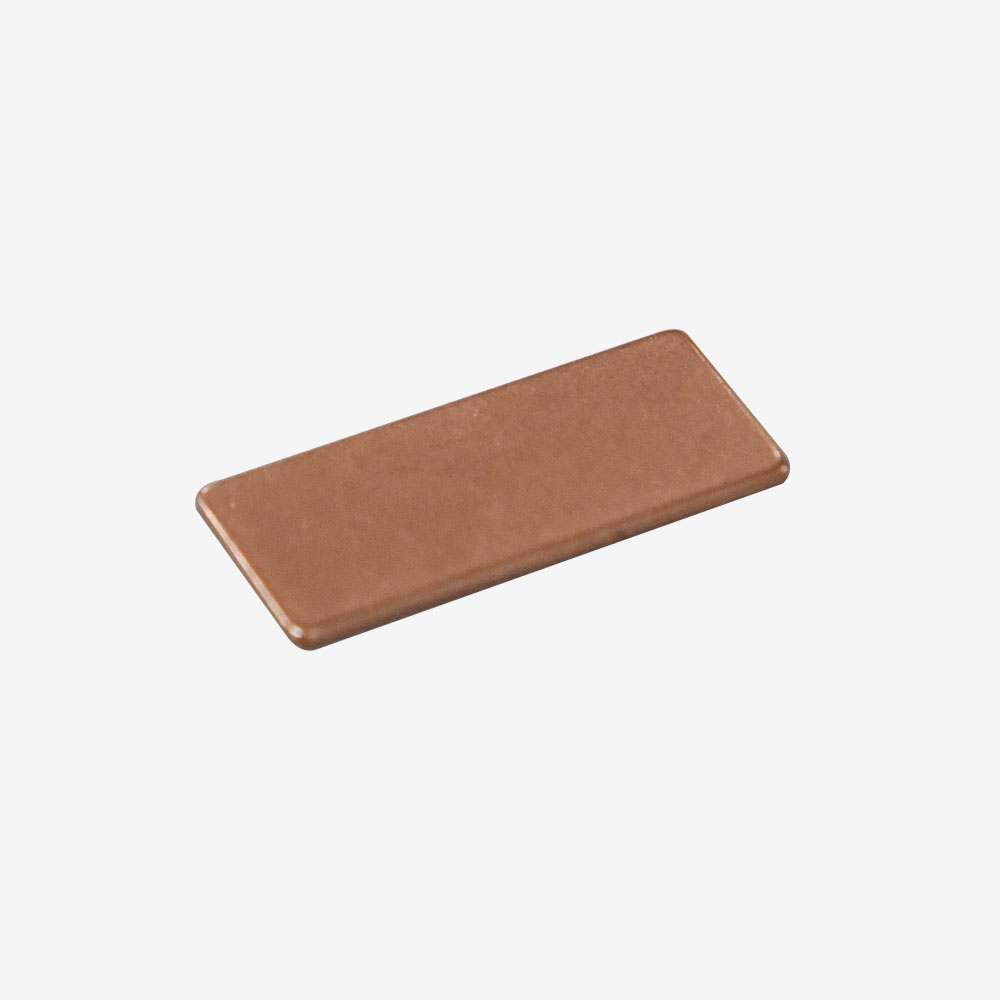

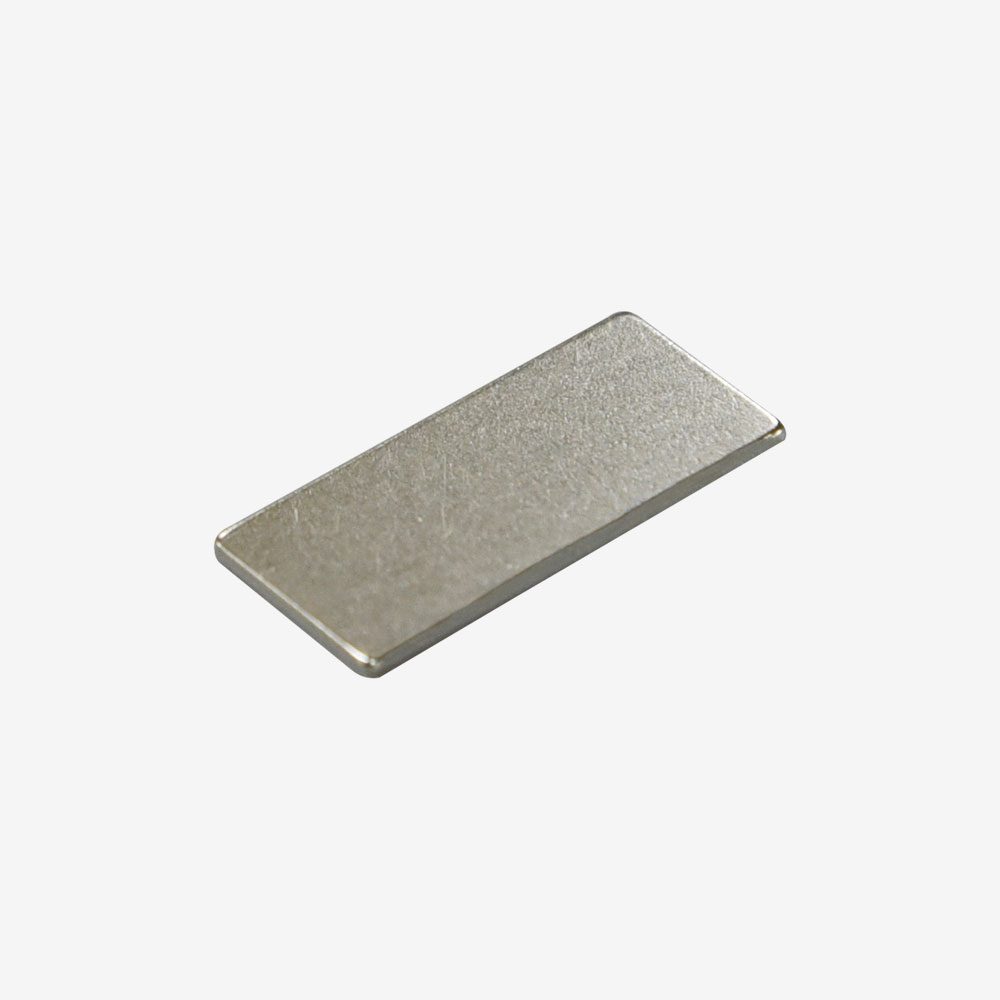

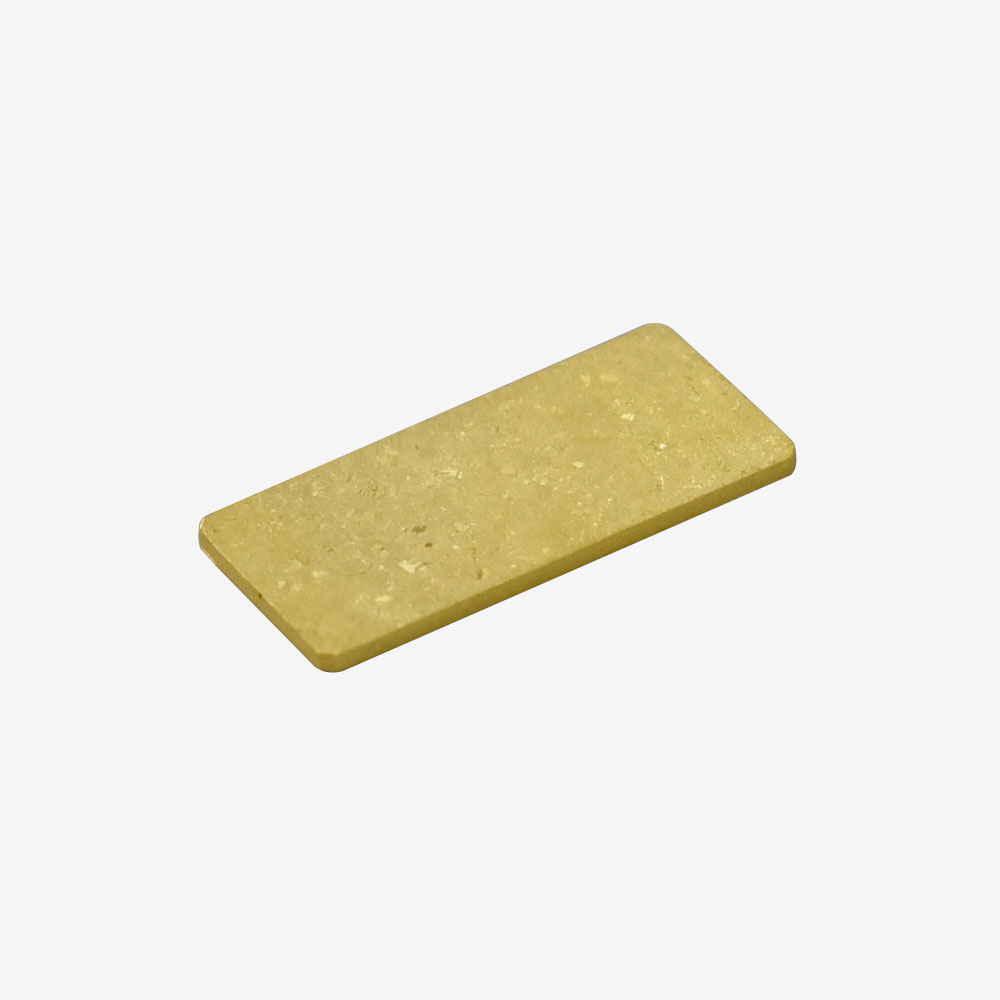

    Heat spreader for RF device

    Dimension

    Width : 20.6mm

    Length : 9.8mm

    Thickness : 1mm

    Features

    High Thermal Conductivity

    Low CTE

    Product Inquiry List

    Specification

    Properties Values
    TC xy (W/mK) 352
    TC z (W/mK) 315
    CTE (ppm/K) @ 800℃ 6.99
    Electrical Conductivity (%IACS) 87.2
    Density (g/㎤) 9.16
    Tensile Strength (Mpa) 294
    ※ TCxy represents the thermal conductivity (TC) in the plane direction of the heat spreader, that is, the x-axis and y-axis directions, and TCz represents the thermal conductivity in the thickness direction of the heat spreader.

    Product Properties

    The values in the tables and graphs guide the material properties in a wide range to explain TGS products.
    COC (Certificate of Conformance) will be issued after confirming the detailed specification.

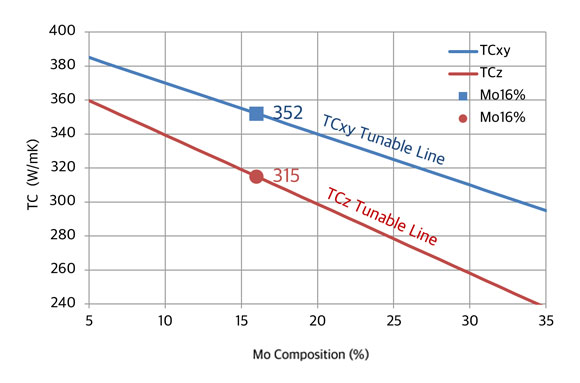

    • Thermal Conductivity (TC)

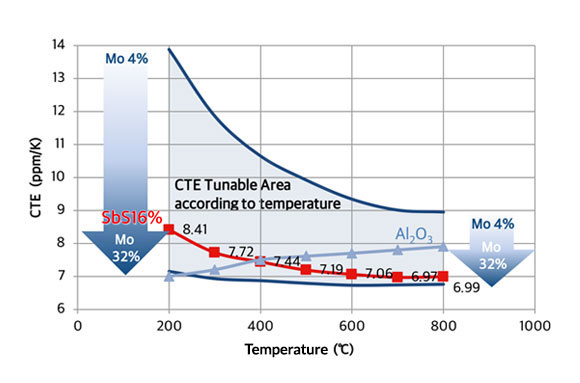

    • Coefficient of Thermal Expansion (CTE)

    • Electrical Conductivity (EC)

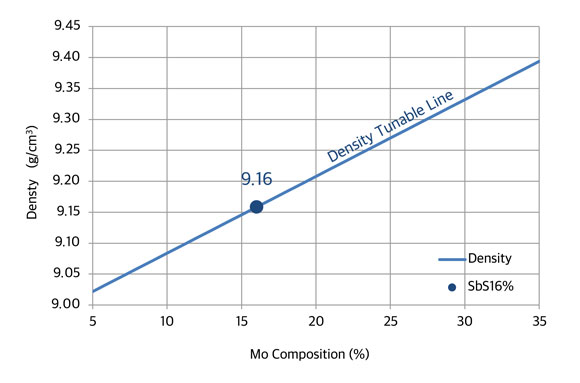

    • Density

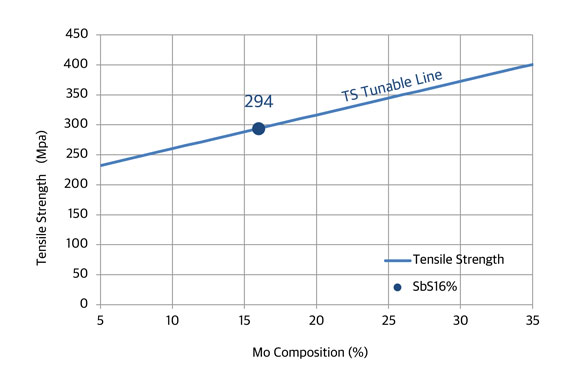

    • Tensile Strength (TS)
